CH450H

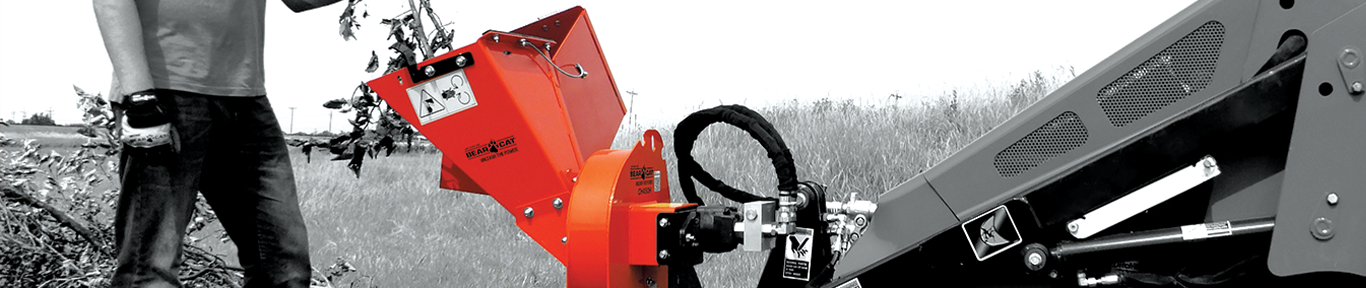

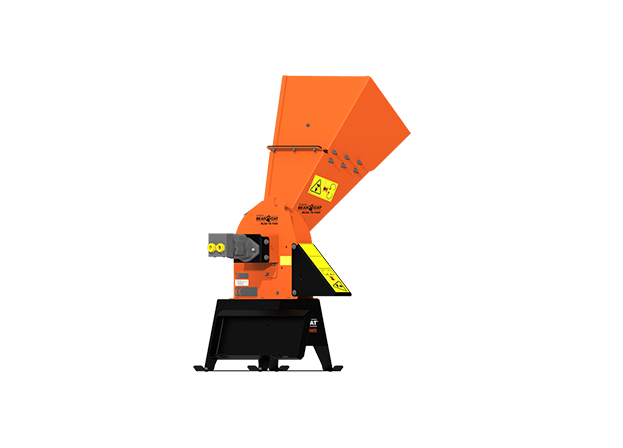

Crary Bear Cat CH450H skid steer chipper in action

CH450H

4.5-inch Skid Steer Chipper

ADAPTABLE POWER.

Add a Crary Bear Cat skid steer Chipper to your shed and watch your to-do list shrink. Easy-to-attach plates make these skid steer Chippers adaptable to your power source.

MSRP $3,699.00

Pricing is manufacturer suggested retail price and subject to change without notice. Actual selling prices are set by individual stores and may vary by region. Illustrations may include optional equipment and accessories and may not include all standard equipment.

Crary® Bear Cat®‘s line of skid steer Chippers attach in seconds and are driven solely by your skid steer’s hydraulics. They are available in standard models. All models will make short work of any troublesome debris.

Continuous chipping size rating refers to the suggested feeding size of limbs for normal operation. Requires 11-15 gpm flow. The CH450H is equipped with Common Industry Interface

 CE compliant model available.

Power

  • Power Source: Mini Skid Steer 11-15 GPM

Dimensions

  • Max Chipping Capacity: 4.5″
  • Rotor Size/Weight: Cantilever, 14″ x 1″/49 lbs., rotates at 2,700 RPM at 11 GPM – 3,700 RPM at 15 GPM
  • L x W x H: 49″ x 34″ x 57″
  • Chipper Chute Opening: 12″ x 13″
  • Chipper Chute Throat: 4.5″ x 4.5″

Chipper

  • Chipping Blades: 2 Reversible Heat-treated
  • Feed System: Gravity/Self Feed
  • Weight: 286 lbs.

    How difficult is it to perform maintenance on the machine?

    Crary® Bear Cat® products are designed with ease of maintenance in mind. Proper maintenance is vital and should be performed routinely with blades, belts and bearings being most important.

    How long will the chipper blades last?

    Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. Hydraulic feed machines will have longer blade life.

    What are these Skid Steer Chippers designed for?

    The Crary® Bear Cat® Chipper is designed to effectively eliminate wood, brush, and other organic material while using your skid steer as the power unit.

    What is the capacity and hydraulic flow requirements of the Skid Steer Chipper?

    The CH450H has a maximum capacity of 4.5″and requires at least 11 to 15 gpm on a mini skid steer. The CH500H has a maximum capacity of 5″and requires at least 15 to 22 gpm on a low-flow skid steer. The CH800H has a maximum capacity of 9” and requires at least 25 to 38 gpm on a hi-flow skid steer.

    Will the Chipper fit my skid steer?

    The Crary® Bear Cat® CH500H and CH800H skid steer chippers are equipped with universal attachment ends, capable of hooking up to most skid steers. The CH450H is designed to mount to mini skid steers.
