CH4420

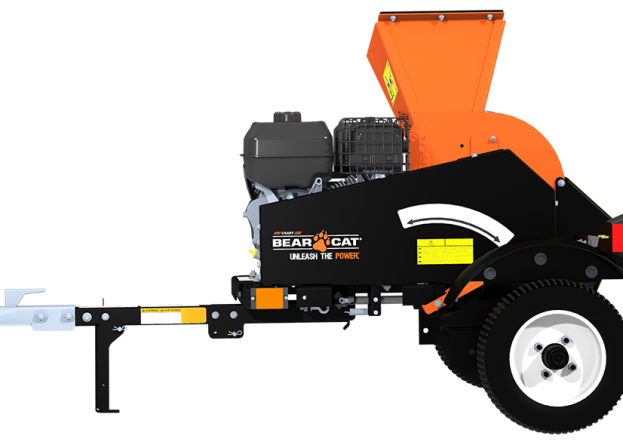

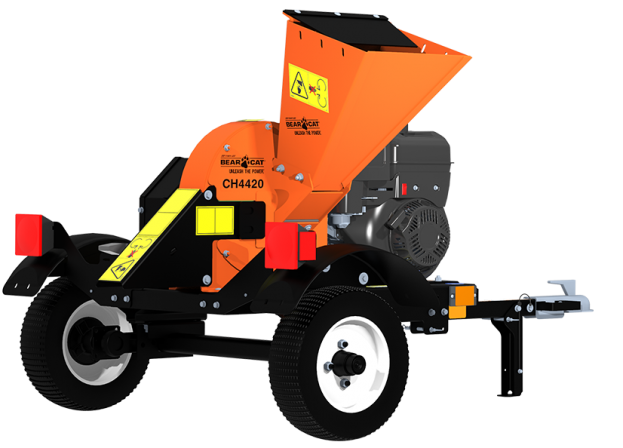

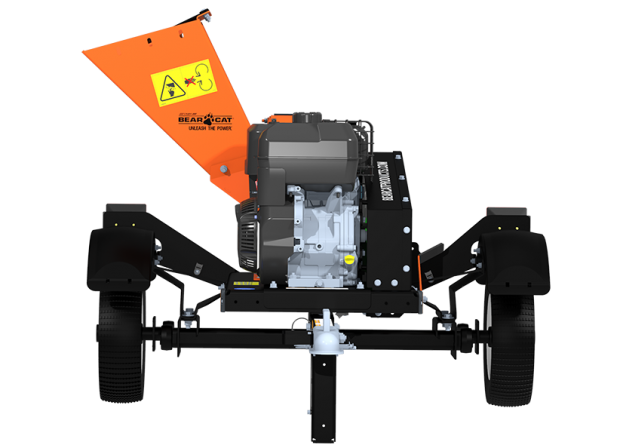

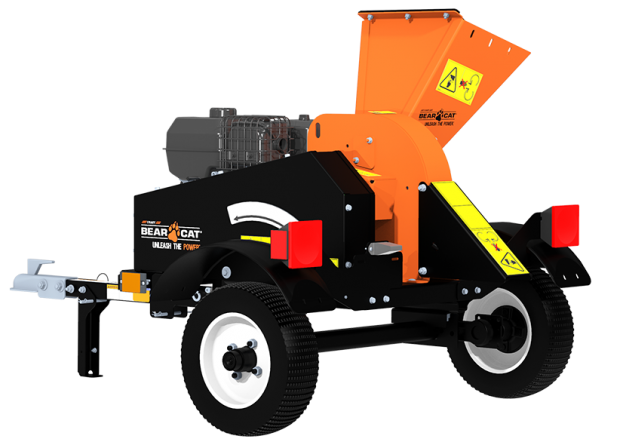

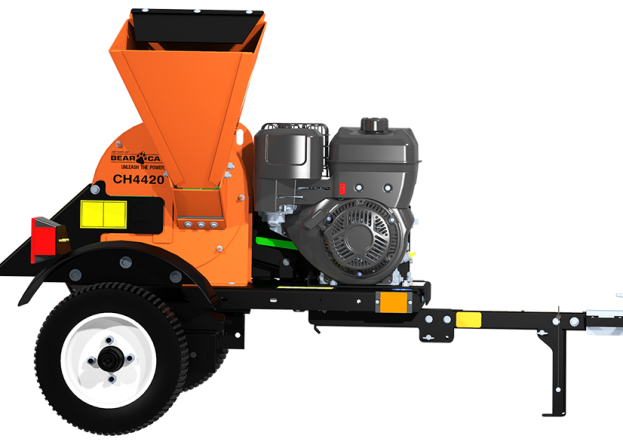

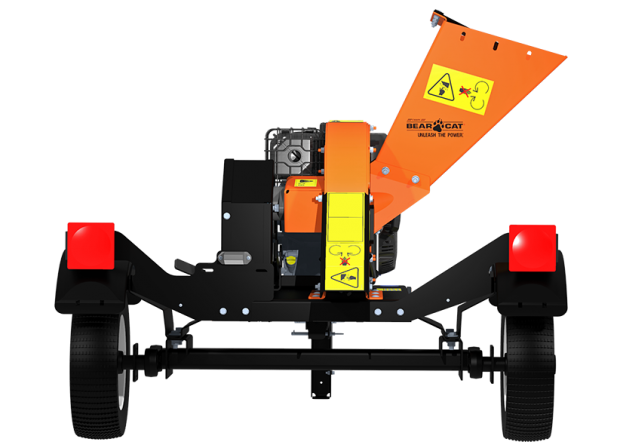

Crary Bear Cat CH4420 Chipper in action

CH4420

4-inch Chipper

Pricing is a manufacturer suggested retail price and subject to change without notice. Actual selling prices are set by individual stores and may vary by region. Illustrations may include optional equipment and accessories and may not include all standard equipment.

SKU: 123 Category:
MSRP $3,949.00

Pricing is manufacturer suggested retail price and subject to change without notice. Actual selling prices are set by individual stores and may vary by region. Illustrations may include optional equipment and accessories and may not include all standard equipment.

The Crary® Bear Cat® CH4420 wood chipper is powered by a 420cc Briggs & Stratton Engine. The 49 lb. rotor is equipped with two oversized, heat-treated chipping blades and rotates 3000 rpm at full throttle. The rotor is driven by a heavy-duty, double-banded belt, for maximum positive power transfer.

The CH4420 wood chipper features a cantilever disc mounting design which assists in decreasing the amount of material wrap that can occur with certain stringy, sappy or wet wood types. It has a 4-sided adjustable anvil as well to ensure chipping quality and quality end product.

This compact and powerful chipper is perfect for the first time chipper buyer, small acreage owner or rental application.

2″ coupler standard.

CE compliant model available.

Engine

  • Make: Briggs & Stratton® XR Pro
  • Gross HP*: 13
  • Starter Type: Recoil
  • Displacement: 420cc

*Horsepower rating based on Engine Manufacturer at time of manufacture

Chipper

  • Chute Opening: 13” x 15”
  • Chute Throat: 4.5” x 4.5”
  • Rotor Size/Weight: Cantilevered 14″ x 1″/49 lbs.
  • Chipping Blades: 2 Reversible Heat-treated
  • Drive Type: Double-Banded Belt
  • Feed System: Gravity/Self Feed

Dimensions

  • Max Chipping Capacity: 4.5” Max capacity and infeed opening
  • L x W x H: 75” x 51” x 45”
  • Weight: 530 lbs.

Trailer

  • Wheel Base: 43”
  • Wheels/Tires: 4.8-8

    How difficult is it to perform maintenance on the machine?

    Crary® Bear Cat® products are designed with ease of maintenance in mind. Proper maintenance is vital and should be performed routinely with blades, belts and bearings being most important.

    How long will the chipper blades last?

    Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. Hydraulic feed machines will have longer blade life.

    What are these Chippers designed for?

    The Crary® Bear Cat® Chipper is designed to effectively reduce the volume of wood, branches, and other organic material. The typical application for this product group is anywhere from light to commercial to municipalities, and/ or rental.

    What is the maximum size of material will these machines chip?

    A Crary® Bear Cat® 9” Chipper will chip up to 9 diameter material.

    What type of Chippers are available?

    Crary® Bear Cat® makes Chippers with gravity or hydraulic feed, powered by an engine package or a tractor PTO. A hydraulic feed machine has a hydraulic driven feed roller to efficiently feed branches to the chipper disc.

    When should I buy a gravity feed machine?

    If you have an infrequent need for a Chipper and time is not a factor, a gravity feed machine will fit your needs.

    When should I buy a hydraulic feed machine?

    If time or efficiency is an issue, a hydraulic feed Chipper allows you to be more productive.

    When should I chip?

    If you don’t plan on composting the material, material is green and stringy or larger than 3/4″ in diameter.
