CH1015H

CH1015H

10-Inch Chipper

POWER AND EFFICIENCY COME STANDARD.

Crary® Bear Cat® engineers and manufactures the strongest lineup of towable Chippers right here in the USA. With a wide range of models, there is sure to be one that fits your needs. On top of this is a bestinclass warranty.

CH1015H Coming 2022

Category:

Not Available Until Late 2021

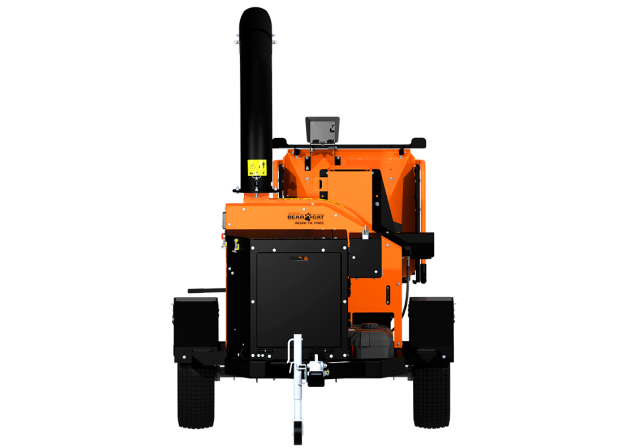

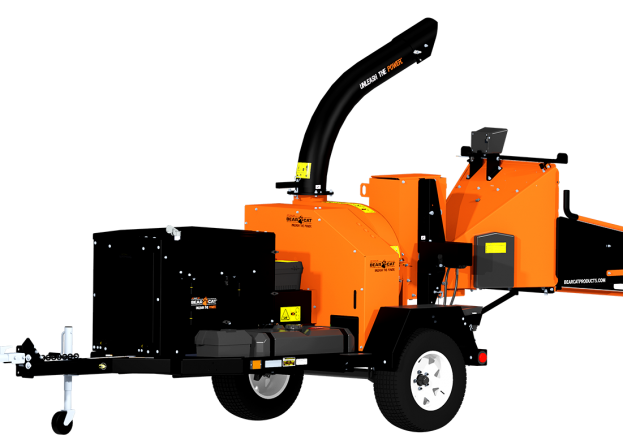

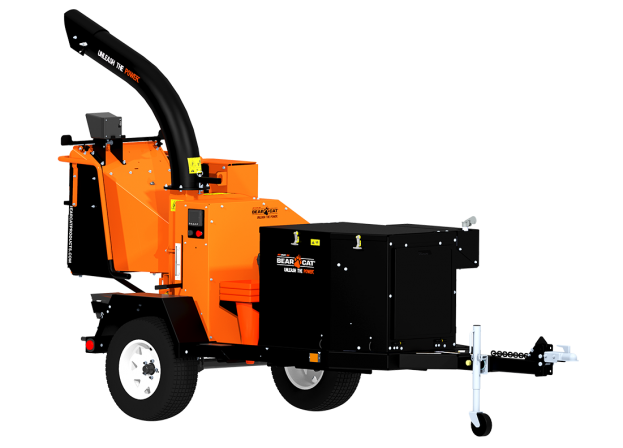

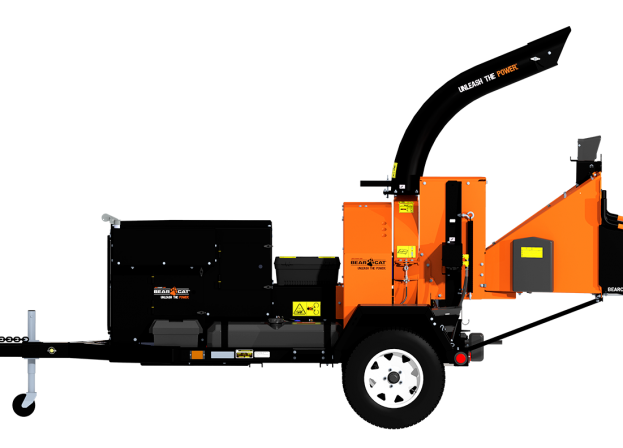

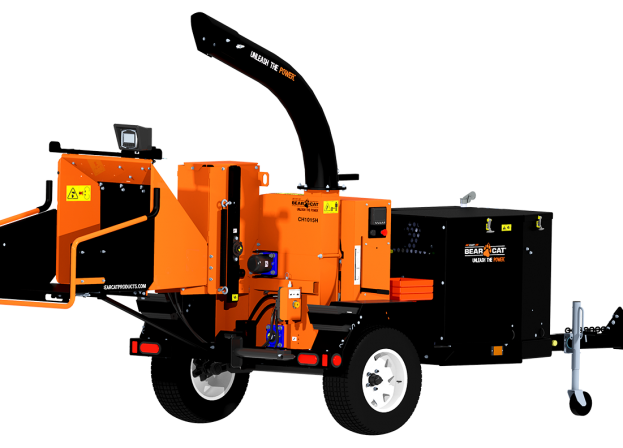

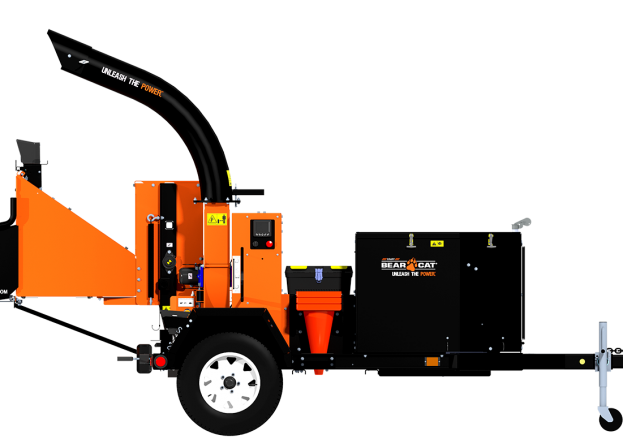

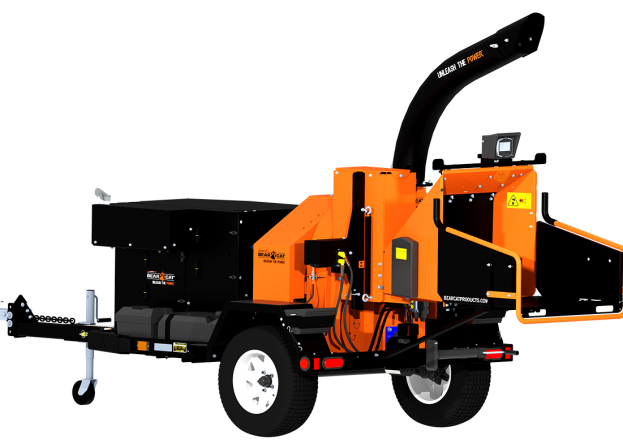

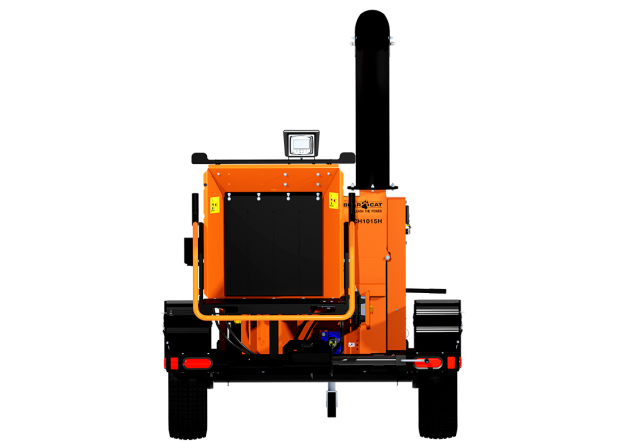

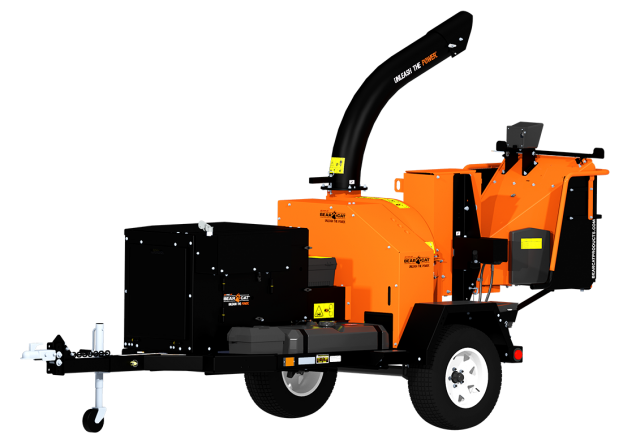

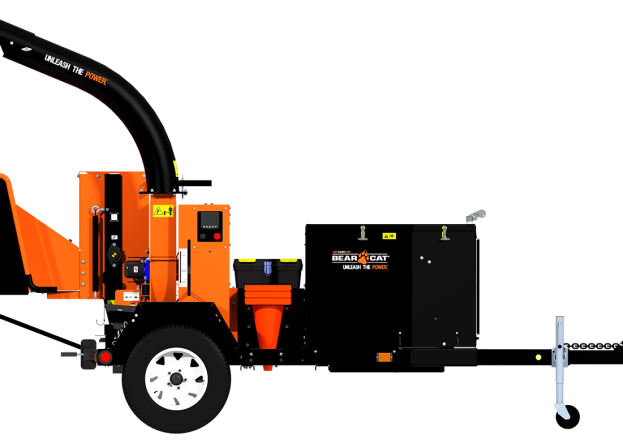

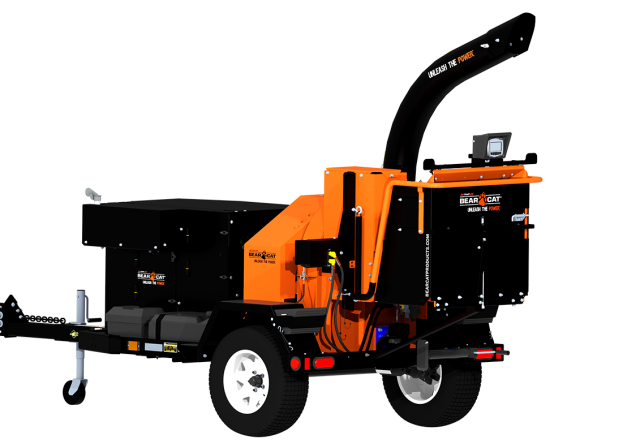

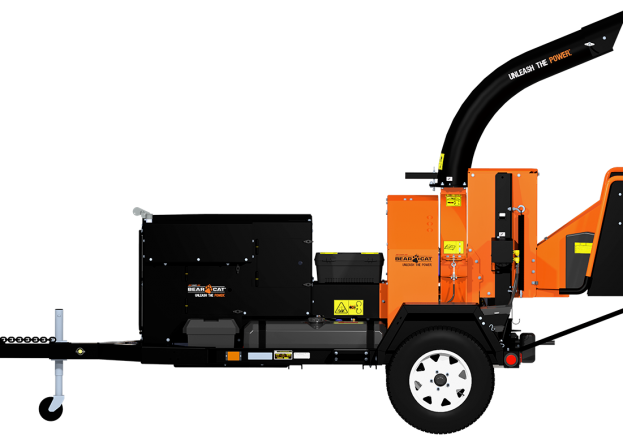

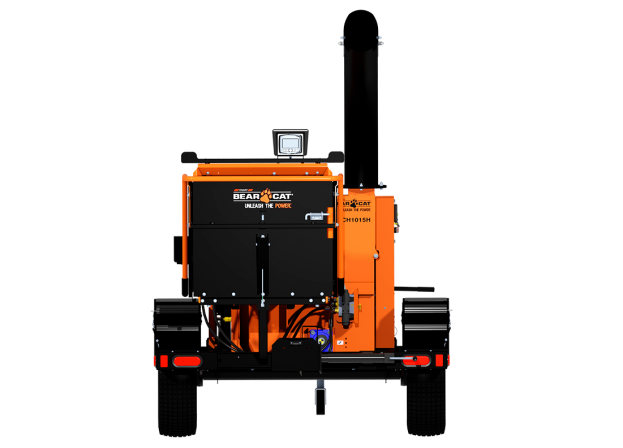

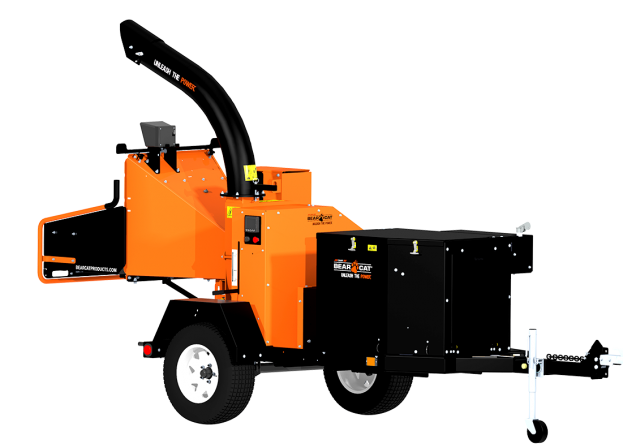

Presenting the powerful Crary® Bear Cat® CH1015H, 10-inch Chipper. Based on a towable frame with torsion axle suspension, the CH1015H makes branches and trees up to 10 inches in diameter disappear. 2″ coupler and electric brakes standard. Features include on-board tool storage, convenient wheel chocks, and storable safety cones to mark your work area for safety.

The 32-inch diameter, 1.25-inch thick dynamically-balanced rotor weighs 308 pounds and produces tremendous chipping power. A triple banded belt drive generates positive power, and a hydrostatic feed control provides the operator with infinite feed settings for all types and sizes of debris. Powered by a Kubota gas engine, the CH1015H kicks out 57 HP and comes with electric start.

With 20 gallons in the fuel tank, you’ll create piles of chips between refills.

Battery sold separately. See Battery Usage Chart for details.

Engine

  • Make: Kubota Gasoline
  • Gross HP*: 57
  • Displacement: 1.5 Liter
  • Starter Type: Electric

*Horsepower rating based on Engine Manufacturer at time of manufacture

Dimensions

  • Max Chipping Capacity: 10″
  • Chute Opening: 31″ x 31″
  • Chute Throat: 10″ x 10″
  • Rotor Size/Weight: 32″ x 1.25″/308 lbs.
  • L x W x H: 184″ x 71″ x 104″

Chipper

  • Chipping Blades: 6 Reversible Heat-treated
  • Drive Type: Triple-Banded Belt
  • Feed System: Hydraulic
  • Auto Feed: Yes
  • Hydraulic Controller: DDC System
  • Weight: 3,082 lbs.

Trailer

  • Towable: Yes
  • Wheel Base: 59″
  • Wheels/Tires: ST205/75R15

    How difficult is it to perform maintenance on the machine?

    Crary® Bear Cat® products are designed with ease of maintenance in mind. Proper maintenance is vital and should be performed routinely with blades, belts and bearings being most important.

    How long will the chipper blades last?

    Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. Hydraulic feed machines will have longer blade life.

    What are these Chippers designed for?

    The Crary® Bear Cat® Chipper is designed to effectively reduce the volume of wood, branches, and other organic material. The typical application for this product group is anywhere from light to commercial to municipalities, and/ or rental.

    What is the maximum size of material will these machines chip?

    A Crary® Bear Cat® 9” Chipper will chip up to 9 diameter material.

    What type of Chippers are available?

    Crary® Bear Cat® makes Chippers with gravity or hydraulic feed, powered by an engine package or a tractor PTO. A hydraulic feed machine has a hydraulic driven feed roller to efficiently feed branches to the chipper disc.

    When should I buy a hydraulic feed machine?

    If time or efficiency is an issue, a hydraulic feed Chipper allows you to be more productive.

    When should I chip?

    If you don’t plan on composting the material, material is green and stringy or larger than 3/4″ in diameter.

    California Consumers: What is California Proposition 65?

    California’s Proposition 65 entitles California consumers to be made aware of products containing certain chemicals above designated threshold levels, enabling them to make informed decisions prior to purchase. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For additional information visit www.P65Warnings.ca.gov.
